Produk Detail

SANKER handheld sonic belt tension meter U-508 consists of two parts: convenient host + precision probe for non-contact tension measurement.

Tension range: 0.01-99900N; Frequency range: 10-5000Hz

1. The measurement accuracy is 1%

2. Can store 500 sets of measurement data and 40 sets of measurement conditions;

3. With 69 built-in designated belt types, the unit mass value can be selected immediately;

4. about 5 minutes after measurement, use the automatic shutdown function to automatically shut down to prevent wasting battery due to forgetting to shut down.

5. Suitable for measuring in small spaces, simple to operate and easy to carry.

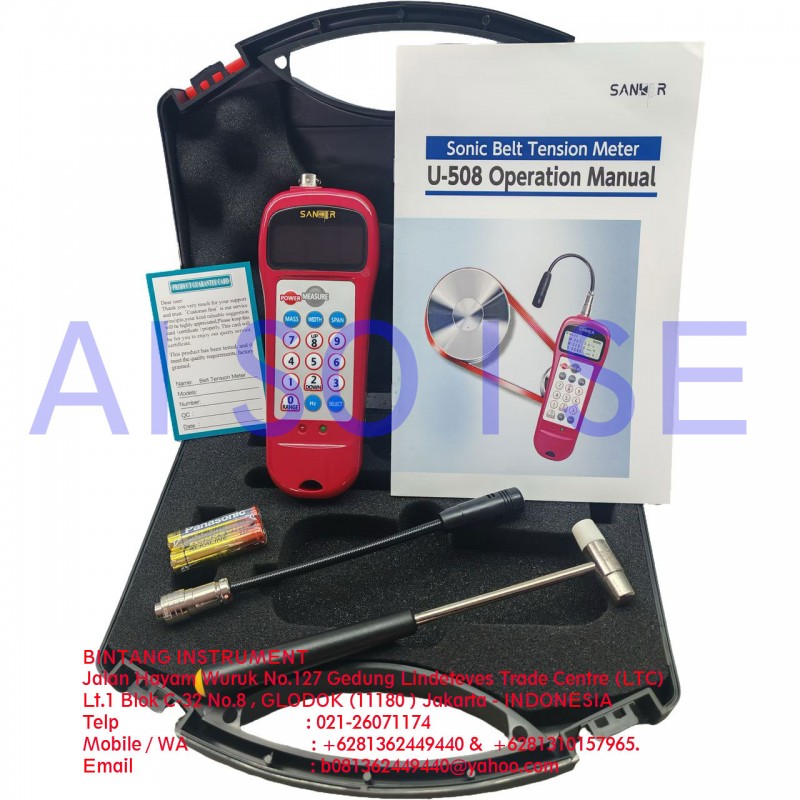

SNAKER Sonic Belt Tension Meter U-508

Introducing the Sonic Belt Tension Meter U-508, the ultimate tool for accurately measuring belt tension!
This revolutionary device was designed by SANKER to easily provide accurate tension measurement data in a convenient and practical way.

Why is belt tension important?

Belt tension directly affects the performance and efficiency of your belt drive system.
Improper belt tension can cause premature belt wear,
resulting in equipment failure and expensive maintenance.
For industrial operations that rely on belt drive systems,
accurate belt tension measurement is critical to ensuring reliable,
efficient operations.

How effective is U-508?

The Sonic Belt Tension Meter U-508 uses a microphone probe to capture the sound
waves generated by belt vibrations. Through advanced signal processing,
the changing waveforms under different conditions are measured and the
tension value is calculated. All you have to do is tap the belt and the U-508 does the rest!

What is unique about Sonic Belt Tension Meter U-508?

This versatile tool is ideal for measuring the tension of a variety of industrial belts,
including V-belts, timing belts, conveyor belts, and more.
The U-508 delivers unparalleled accuracy and reliability,
ensuring you always have reliable tension measurement data.

Measurement principle

The sound waves generated by the amplitude of the belt are captured by a microphone probe.
Analog signal processing; can measure vibration waveforms under different conditions
and read the period of the waveform. The tension value can be converted
by the number and frequency of processing cycles. You can quickly obtain data by simply tapping the belt.

Wide range of applications

SANKER handheld sonic belt tension meter U-508 can test most belt types,
such as V-belts (V-belt series), cloth-wrapped belts, toothed edge belts, multi-V belts,
linkage belts, synchronous belts and transmission belts and other industrial belts,
Help you measure belt tension quickly, reliably and accurately.

----------------------
==================================
============================================================
============================================================================

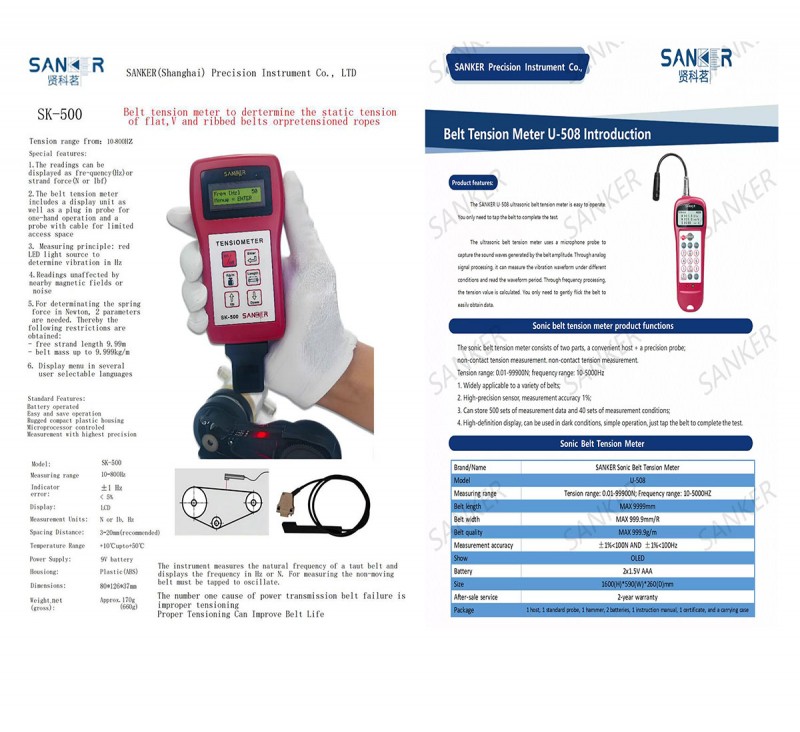

2.  Infrared Belt Tension Meter

     Type : SK500
     Origin : China
     Brand : Sanker

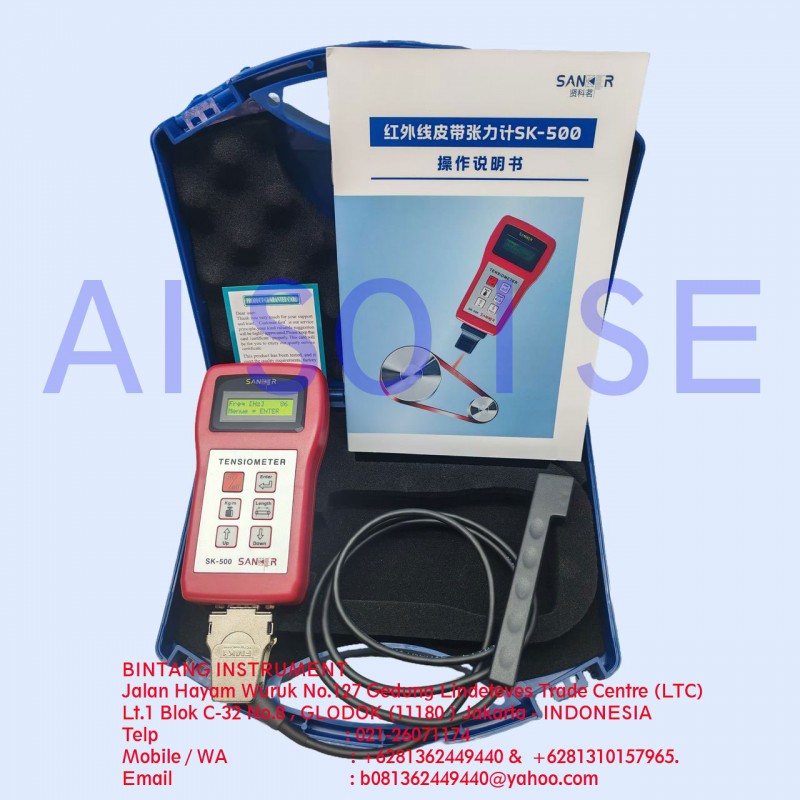

SK-500 belt tension meter

Dual probe (short probe and extension probe)

Can be operated with one hand or used in small spaces

SK-500 tensiometer is used to measure static tension, V-shaped transmission belts, leather products,
fabrics, etc. local natural frequency (Hz), adjust the appropriate tension during the production process,
and the measured value can be converted into N or lbf.

This instrument uses pulsed red light to measure the natural frequency of the belt when it vibrates.
Its characteristics are accurate and fast measurement results, suitable for field or laboratory applications.

Features:

Standard configuration: 2 probes - short probe for one-handed measurement, and extension probe for measuring in confined spaces

Compact design, easy to operate

Measurement accuracy is not affected by surrounding magnetic fields and noise

Measurement unit switching N, lbf, Hz

=====================================================
