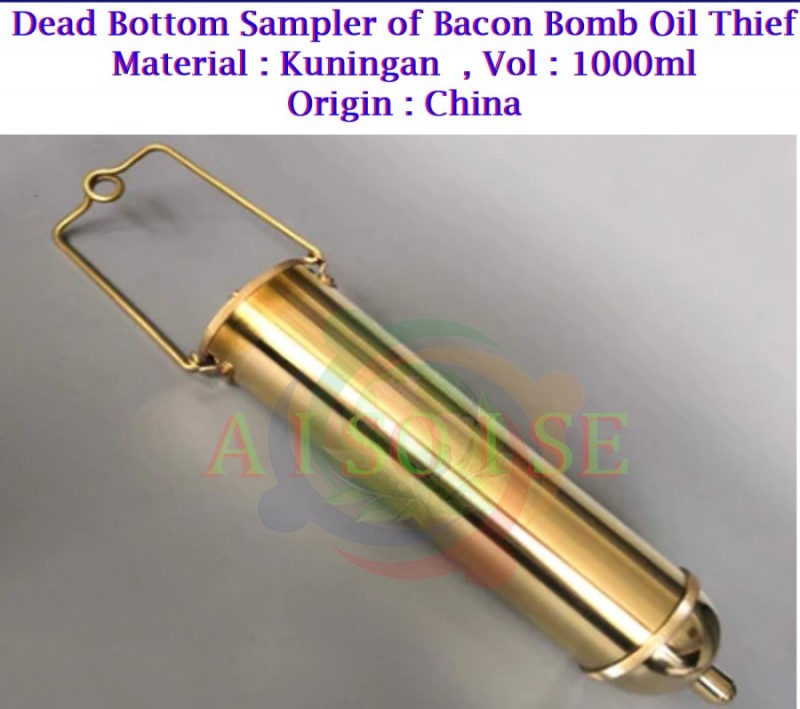

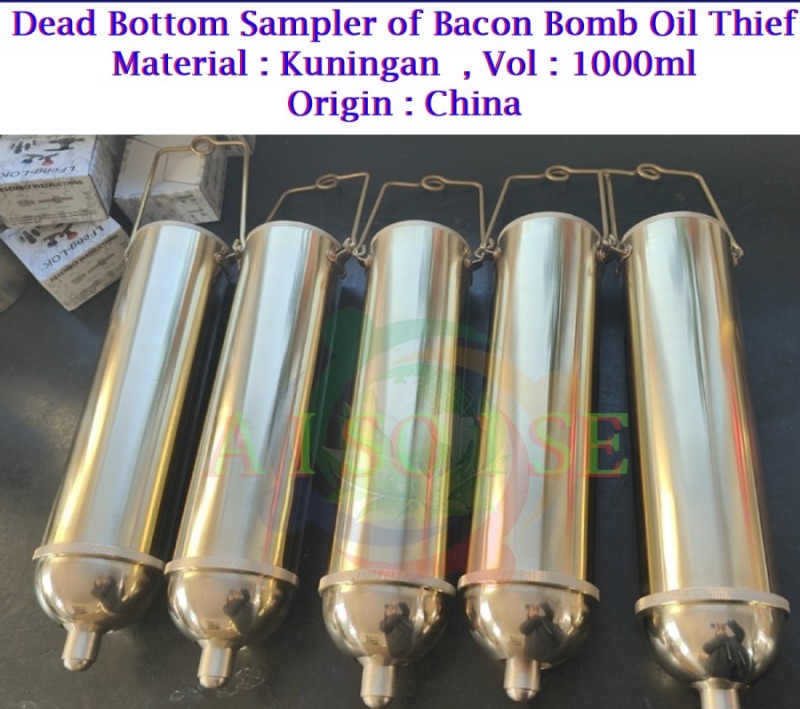

Dead Bottom Sampler

Model : Dead Bottom Sampler AI SO I SE 1000 ml

Material: Stainless Steel

Capacity: 1000 ml/  32oz

Origin : China





Dead Bottom Sampler

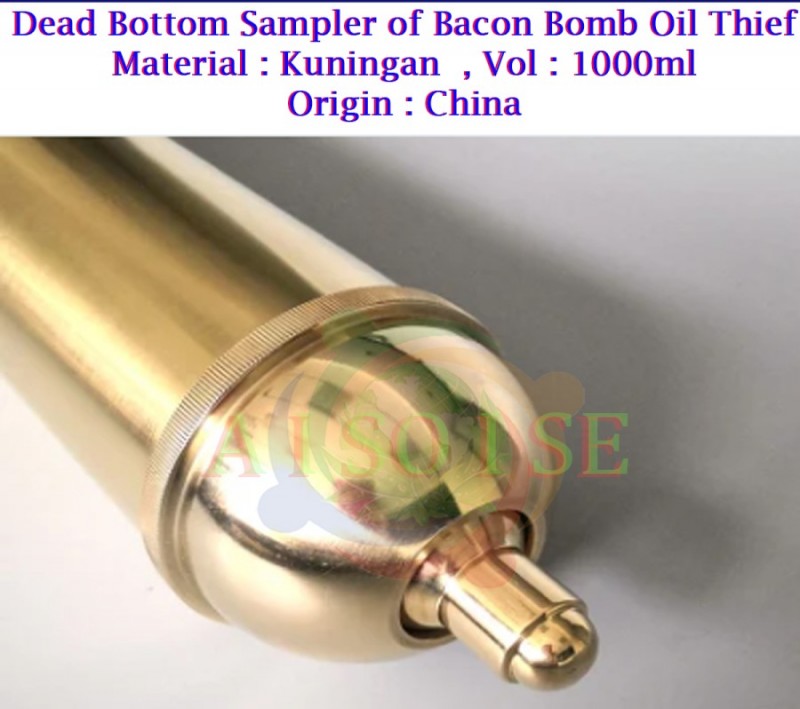

       Dead bottom sampler, such as bacon bombs, Sampling Thief Bomb, normally have a projecting stem that opens the inlet valve as the stem strikes the bottom of the tank.

       The sample enters the sampler through the bottom valve and air is released simultaneously through the top valve. The inlet valve automatically closes when the sampler is withdrawn. The sampler can also equipped with extension rods to obtain samples from those point in a tank.



Certifications/Compliance : ASTM D4057, D6074 or ASTM D1265

Product Type : Petroleum Bacon Bomb Sampler

For Use With (Application) : Obtains samples from storage tanks, tank cars and drums When the thief strikes the bottom of the tank, a plunger assembly opens to admit the sample. The plunger closes again when the bomb is withdrawn, forming a tight seal. Samples can be taken at any depth with the use of a secondary trip line.
