Produk Detail

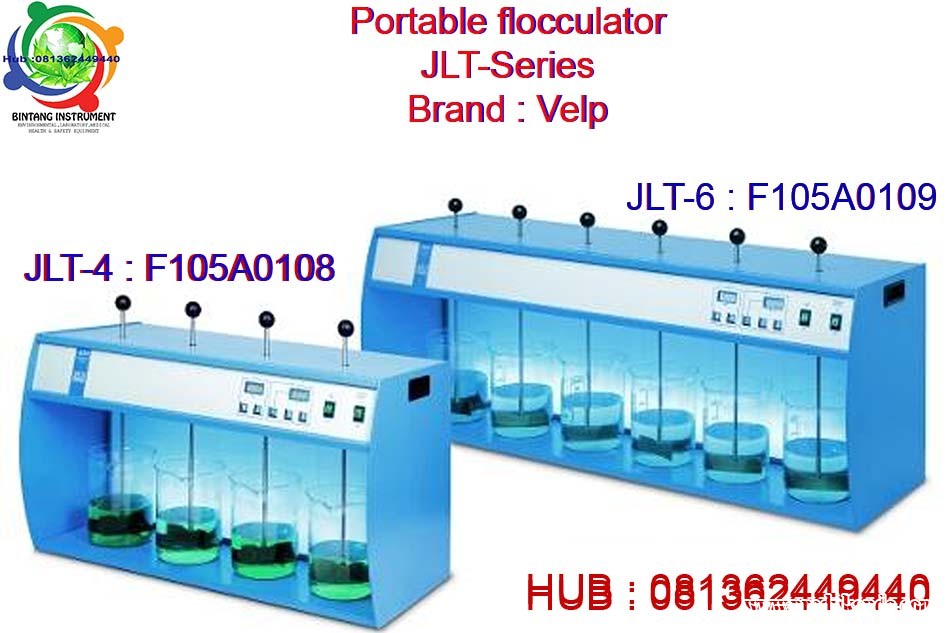

 Portable flocculator / JAR TEST
 Type : JLT-4
 Brand : Velp.

 Specification :
 Jar Test / Flocculators JLT 4

 The JLT 4 is a multiple stirrers with reproducible stirring speeds allowing standard conditions to be met during analysis, a basic requirement in order to obtain reliable and repeatable results.
 The highly versatile stainless steel stirring shafts offer height adjustment and are fitted with a self-locking device with clutch.
 The sample can be backlit for easier reading.
 The instrument has an ergonomic design and the control panel is sloped to facilitate parameter settings and readings. The rotation speed can be set from 10 to 300 rpm, with 1 rpm intervals, the time remaining can be set in hours or minutes.

 GENERAL FEATURES
 Construction material: epoxy painted metal structure
 Number of stirring rods: 4
 Stainless steel stirring rods: adjustable in height by a selfblocking chuck
 Back panel: disconnectable lighted
 DC gear motor
 Monoselector: same speed for each rod
 Power: 19 W
 Power supply: 115 V or 230 V / 50-60 Hz
 Weight: 13 kg ( 28.6 lb)
 Dimension ( WxHxD) : 645x347x260 mm ( 25.4x13.7x10.2 in)

 PERFORMANCES
 Electronic speed control: from 10 to 300 rpm
 Speed setting interval: 1 rpm
 Microprocessor controlled timer: 0 ÷ 999 min or 0 ÷ 99 hours ( or continuous)
 .
 .
 .
 ...
 ..
 ....
 Portable flocculator / JAR TEST

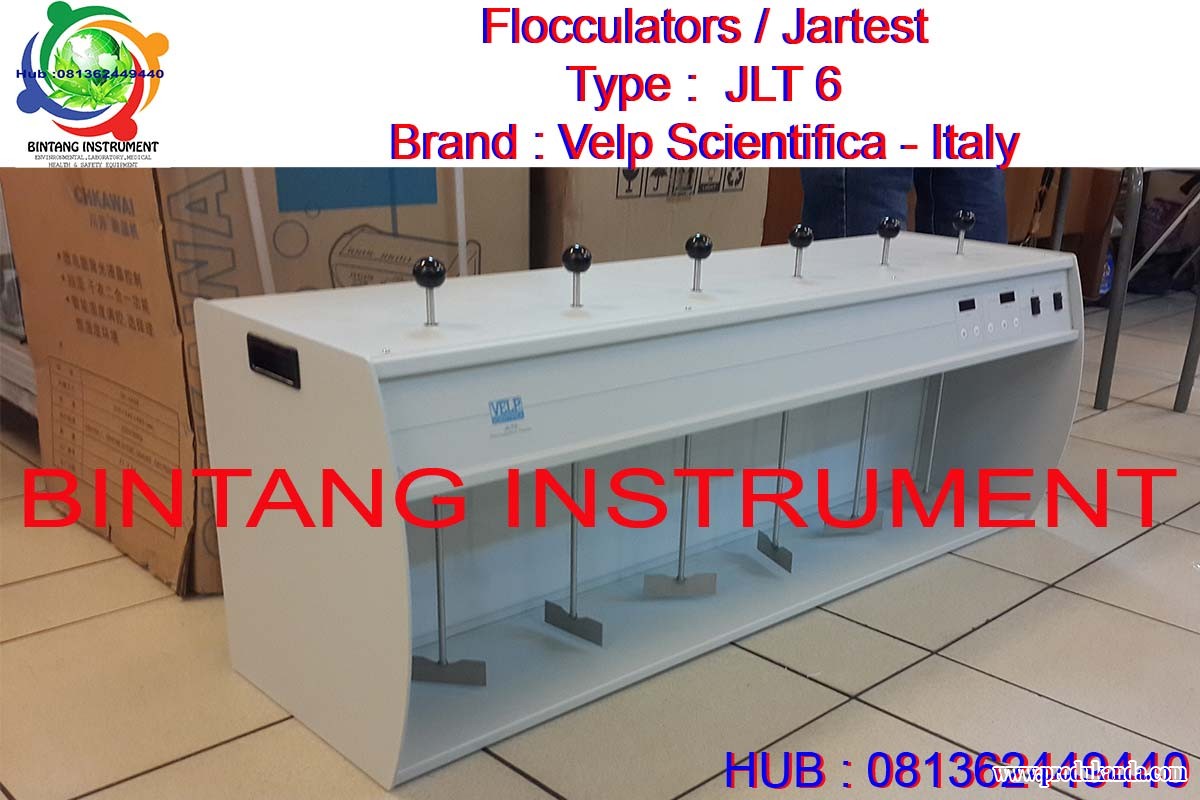

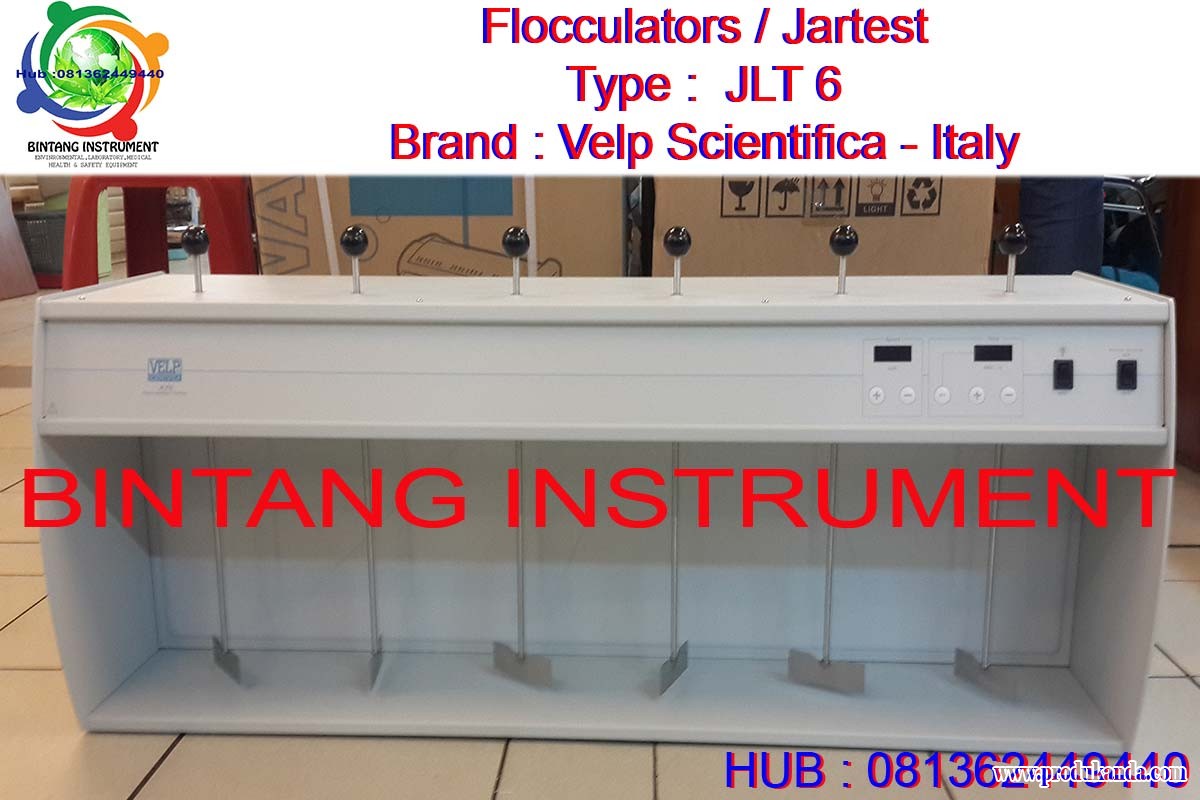

 Type : JLT-6
 Brand : Velp

 SPECIFICATION :
 Description
 The JLT6 flocculator is designed both for optimizing the dosing of coagulants for separating pollutants in wastewater treatment plants thanks to the laboratory results obtained using the so-called Jar Test, and for running toxic substance leaching tests on solid wastes to be sent to the dump.

 The multiple stirrers with reproducible stirring speeds allow standard conditions for the tests to be adopted, a basic requirement in order to obtain reliable results.

 The sample being examined can be backlit using a special switch found on the front panel making for easier readings.

 The instrument has an ergonomic design and the control panel is tilted for easier parameter settings and readings. The rotation speed can be programmed from 10 to 300 rpm with 1 rpm intervals and the time remaining can be set to hours or minutes

 Technical Data
 GENERAL FEATURES

 Construction material: epoxy painted metal structure
 Number of stirring rods: 6
 Stainless steel stirring rods: adjustable in height by a selfblocking chuck
 Back panel: disconnectable lighted
 DC gear motor
 Monoslector: same speed for each rod
 Power: 19 W
 Power supply: 115 V or 230 V / 50-60 Hz
 Weight: 17 kg ( 37.4 lb)
 Dimension ( WxHxD) : 935x347x260 mm ( 36.8x13.7x10.2 in)

 PERFORMANCES
 Electronic speed control: from 10 to 300 rpm
 Speed setting interval: 1 rpm
 Microprocessor controlled timer: 0 ÷ 999 min or 0 ÷ 99 hours ( or continuous)
