Jual Oktane Analyzer SX-150 Jual SX150 Shatox Octane Analyzer Distributor Brochure PDF harga Rp.

  • Minimal Pembelian : 1 Unit
  • Maksimal Pembelian : 100 Unit
  • Pengiriman : 90 Hari Setelah Pembayaran
  • Lokasi : DKI Jakarta - Jakarta Barat
  • Harga : Rp. 87.000.000 / Unit
  • Dilihat : 201 Kali
  • Pembaruan : 25-02-2025 17:15
Dapatkan Spesifikasi Harga Jual Oktane Analyzer SX-150 Jual SX150 Shatox Octane Analyzer Distributor Brochure PDF harga Rp. Produk Terbaik dari BINTANG INSTRUMENT Jual Alat test Air/ Udara/ Makanan/Safety/ Laboratory

Produk Detail

 BINTANG INSTRUMENT
HP : 081362449440 / 081310157965
Email : b081362449440@yahoo.com
Up : Mr Jonathan
================================






Portable Octane / Cetane Analyzer
Type : SX-150
Brand : Shatox
Origin : Rusia

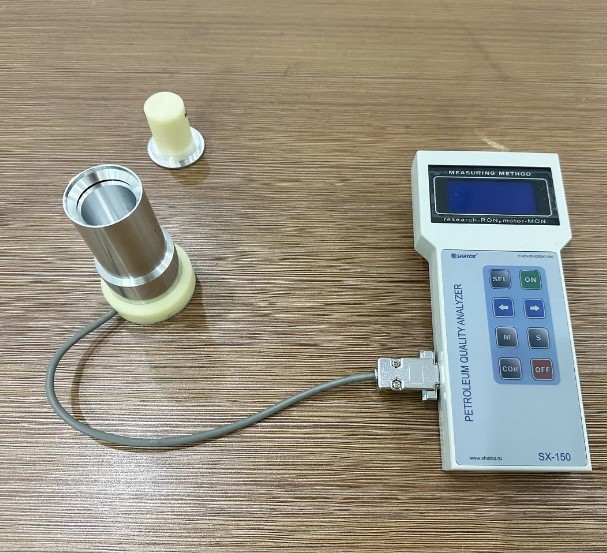

SHATOX SX-150

The SX-150 analyzer is designed for testing fuel quality. It is a portable small-sized device intended for rapid analysis of oil products quality in field and laboratory conditions.

It is an upgraded generation of fuel analyzers that superseded SX-200 and was designed on the basis of SX-300 analyzer.

SX-150 has additional modes for determining gasoline oxidation breakdown time and kerosene percentage in diesel fuel.

The device can be used together with a PC or a laptop through a USB interface. SX-150 supports the automatic computer-based calibration. Measurement results, including the analysis date and time, can be saved in the instrument memory and transferred to the PC (in .xlsx or .txt format).

SX-150 has an 8-key antiglare keyboard, which is easy for operation, wear-proof and resistant to aggressive environments.

The software for the instrument can be downloaded from the manufacturer’s website www.shatox.com in Download section.

Operating conditions: air temperature range from -10°С up to +45°С.

The device is powered from 4 elements of АА type (R6) or from a computer USB port.


Instrument capabilities:

  • Gasoline octane level in compliance with ASTM D 2699-86, ASTM D 2700-86.
  • Diesel fuel cetane level in compliance with ASTM D 4737-03, ASTM D 613, EN ISO 5165.
  • Diesel fuel type and сold filter plugging point (СFPP) (reference parameter).
  • Kerosene percentage in diesel fuel (reference parameter).
  • Gasoline breakdown time (oxidation stability) (reference parameter).
Parameter description Measurement units Value

Range of measured gasoline octane level

ON

40–135

Acceptable limit of octane number measurement basic error, max

ON

± 0.5

Limit of acceptable difference between parallel octane number measurements, max

ON

± 0.2

Petrol oxidation breakdown time measurement range

min.

50-2400

Acceptable basic error limit of petrol oxidation breakdown time

min.

10

Range of measured cetane level

CN

20–100

Acceptable basic error limit of cetane numbers, max

CN

±1.0

Acceptable difference limit between cetane numbers parallel measurements, max

CN

± 0.5

Acceptable error limit when determining СFPP

C o

± 5

Kerosene content determination range in diesel fuels

%

0-95

Acceptable basic error limit when determining kerosene content in diesel fuels

%

3

Measurement time

sec

1–5

Insufficient power supply indication operation threshold

V

5.4

Instrument useful life

Years, minimum

6

Overall dimensions of:





     electronic module

mm

211x100x45

     sensor #1

mm

60х100

 Instrument mass with a sensor

gr

680








.
.
.
..
.
.
