Jual SHATOX SX-250 portable octane/cetane analyzer Jual SX-250 SHATOX Indonesia Distributor Rp.

  • Minimal Pembelian : 1 Unit
  • Maksimal Pembelian : 100 Unit
  • Pengiriman : 90 Hari Setelah Pembayaran
  • Lokasi : DKI Jakarta - Jakarta Barat
  • Harga : Rp. 116.000.000 / Unit
  • Dilihat : 162 Kali
  • Pembaruan : 25-02-2025 17:15
Dapatkan Spesifikasi Harga Jual SHATOX SX-250 portable octane/cetane analyzer Jual SX-250 SHATOX Indonesia Distributor Rp. Produk Terbaik dari BINTANG INSTRUMENT Jual Alat test Air/ Udara/ Makanan/Safety/ Laboratory

Produk Detail

 BINTANG INSTRUMENT
HP : 081362449440 / 081310157965
Email : b081362449440@yahoo.com
Up : Mr Jonathan
================================




Portable Octane / Cetane Analyzer
Type : SX-250
Brand : Shatox
Origin : Rusia


SHATOX SX-250

New oil products grade analyzer is manufactured on the basis of advanced high precision microprocessor. This model is designed for the operation with fuels and oils. It continues the series “2xx” (fuel and oil quality analysis). Additionally, SX-250 has the mode for determining the purity of mineral and synthetic oils, the mode for measuring dielectric permeability of oil products, as well as the mode for determining water content in diesel.

The instrument can be used together with a PC or laptop through USB interface. Analyzer uses automatic computer-based calibration, saving measured data in the instrument memory with analysis date and time followed by their transfer to the PC (in Microsoft Excel or txt format). The instrument has easy of control attrition and aggressive environments resistive 8-key antiglare keyboard.
The instrument uses the timer microchip, which allows storing measurement results with analysis date and time. These data can also be transmitted to the computer.

Instrument capabilities:

  • Gasoline octane level in compliance with ASTM D 2699-86, ASTM D 2700-86.
  • Diesel fuel cetane level in compliance with ASTM D 4737-03, ASTM D 613, EN ISO 5165.
  • Diesel fuel type and сold filter plugging point (СFPP) (reference parameter).
  • Kerosene percentage in diesel fuel (reference parameter).
  • Gasoline breakdown time (oxidation stability) (reference parameter).
  • Purity level of motor oil.
  • Dielectric permeability of oil products (Eps).
  • Water percentage in diesel.
Parameter description Measurement units Value

Range of measured gasoline octane level

ON

40–135

Acceptable limit of octane number measurement basic error, max

ON

± 0.5

Limit of acceptable difference between parallel octane number measurements, max

ON

± 0.2

Petrol oxidation breakdown time measurement range

min.

50-2400

Acceptable basic error limit of petrol oxidation breakdown time

min.

10

Range of measured cetane level

CN

20–100

Acceptable basic error limit of cetane numbers, max

CN

±1.0

Acceptable difference limit between cetane numbers parallel measurements, max

CN

± 0.5

Acceptable error limit when determining diesel-fuel pour point

C o

± 5

Kerosene content determination range in diesel fuels

%

0-95

Acceptable basic error limit when determining kerosene content in diesel fuels

%

3

Range of measured purity of motor oils

%

95-100

Acceptable basic error limit when determining purity of motor oils

%

0.01

Range of measured dielectric permeability of oil products

units

1-5

Range of measured water content in diesel

%

0-4

Acceptable basic error limit when determining water content in diesel

%

0.01

Measurement time

sec

1–5

Insufficient power supply indication operation threshold

V

5.4

Instrument useful life

Years, minimum

6

Overall dimensions of:





     electronic module

mm

211x100x45

     sensor #1

mm

60х100

 Instrument mass with a sensor

gr

680

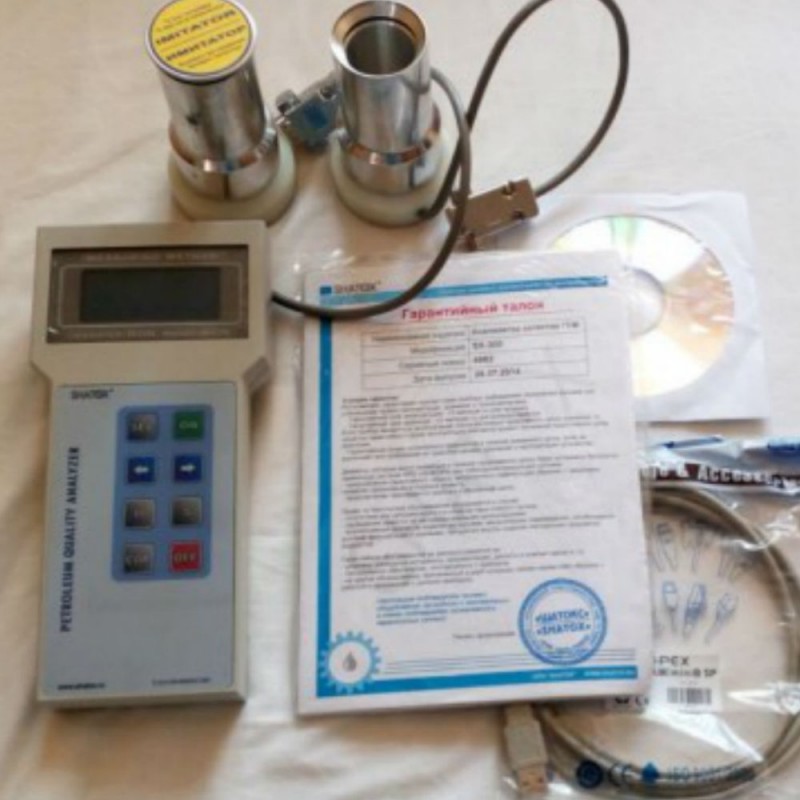

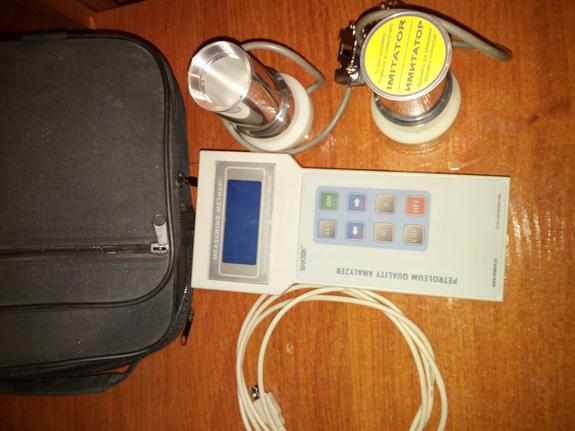

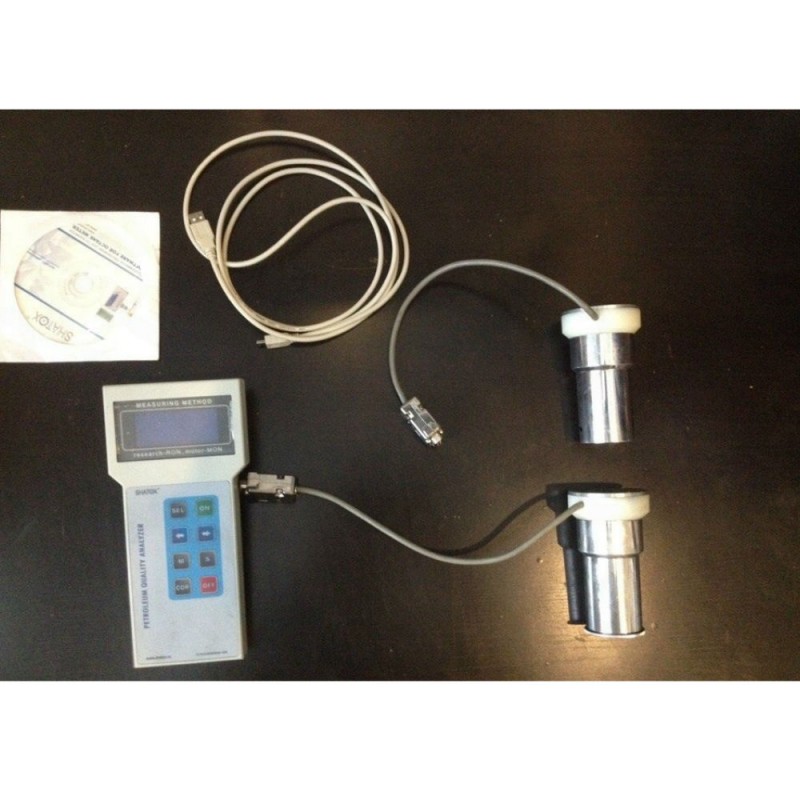

Delivery package:

  • Electronic computing module
  • Sensor #1
  • Sample imitator
  • Mini-USB cable
  • Operations manual
  • Quick start guide
  • Warranty certificate
  • Tool canvas bag
