Odor Level Indicator XP-329IIIR ODOR METER COSMOS XP-329IIIR..
Dapatkan Spesifikasi Harga Odor Level Indicator XP-329IIIR ODOR METER COSMOS XP-329IIIR.. Produk Terbaik dari
BINTANG INSTRUMENT Jual Alat test Air/ Udara/ Makanan/Safety/ Laboratory
Produk Detail
BINTANG INSTRUMENTHP : 081362449440 / 081310157965
Email : b081362449440@yahoo.com
Up : Mr Jonathan
================================

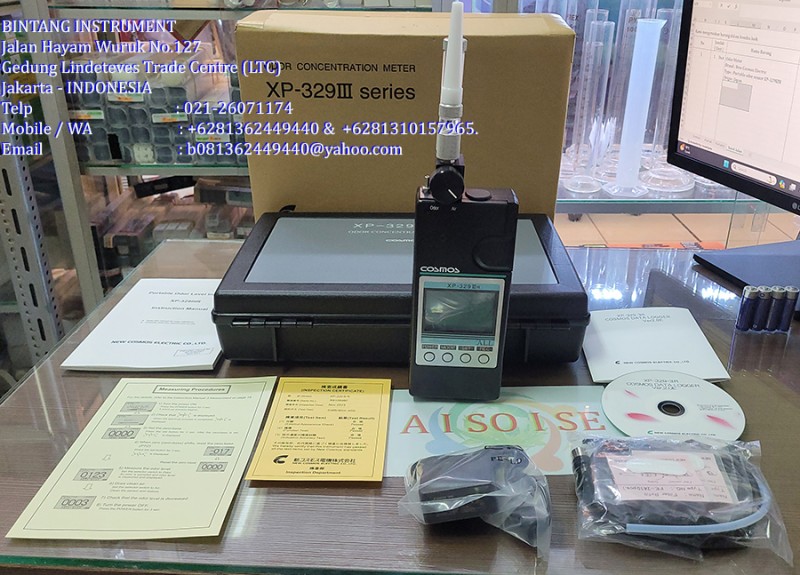

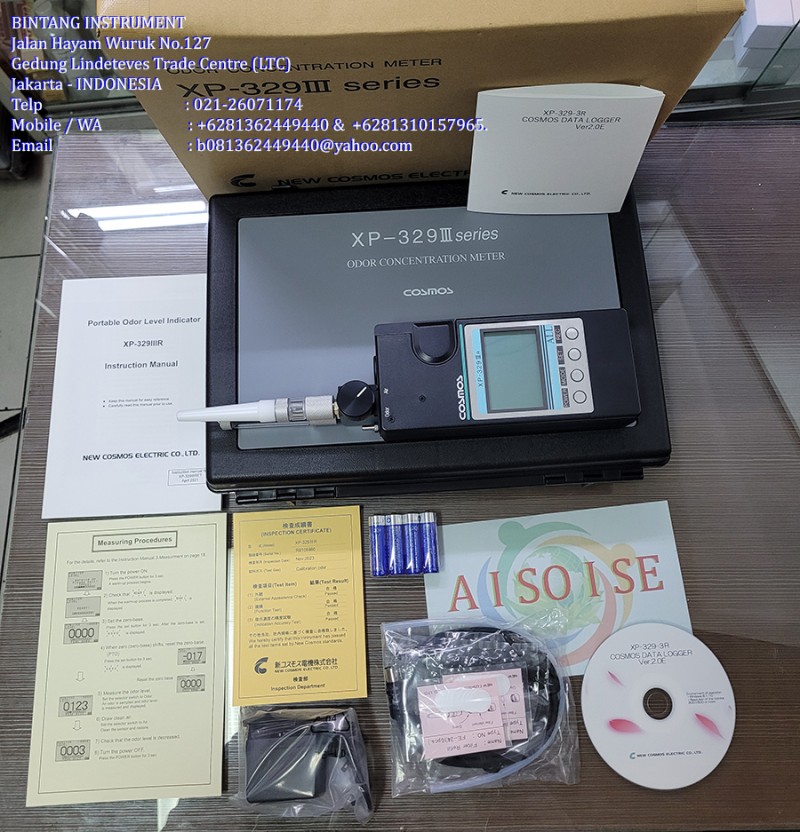

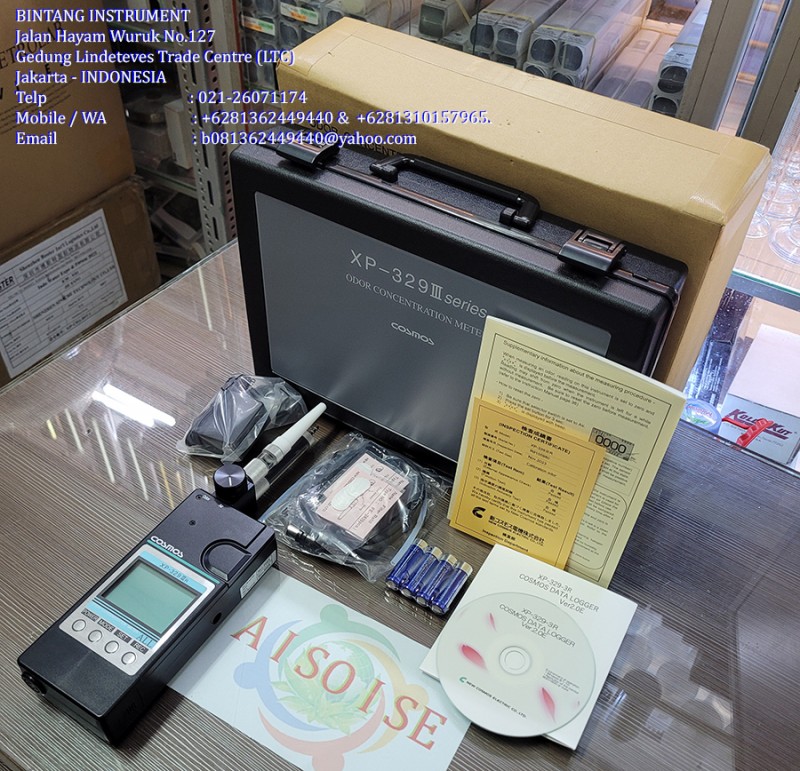

Odor Level Indicator
Type : XP-329IIIR
Brand : Cosmos
Origin : Japan
Applications
Performance check of air purifier and deodorization equipment
Odor measurement of factory exhausts
Quality control of foods and spices
Features
Switchable indication between “Odor strength level” and “Olfactory measured odor index”.
Excellent repeatability
Little cross interference to odorless gas
Peak hold function
Data memory function that enables data stored in the memory to be retrieved from a PC using dedicated software.
Manual zero base setting it not necessary.
A bar graph on the screen displays the sensor status. Maintenance timing can be checked.
Specifications
Substance Measured Various odors, odor components
Detection Principle Indium oxide-based sensitivity hot wire semiconductor sensor
Sampling Method Extractive *Extractive flow: 400±150ml/min
Display LCD digital indication (64 x 128 dots matrix)
(measurement value, measurement mode, operating conditions, remaining battery level,
data memory, bar indication for sensor output and communication channel etc.)
Measurement Mode Monitoring mode/Batch mode
Detection Range Level indication: 0-2000 (In case of zero-based setting at the 2nd dot
from the left in the sensor output bar graph)
Repeatability Measurement value ±5% ±1 digit*1 level indication
Response Time 20s or less (90% response) by calibrated odor
External Output Analog output: Level indication: 0000-2000 corresponding to DC0-200
mV. (0.1 mV as contrasted wiyh indication 1)
(Except approx. 204.8 mV in case of OVER LEVEL)
Digital input/output: RS-232C output the indicated value (ASCII Code)
(Except in case of OVER LEVEL, output[****])
External Output Terminal DIN connector for both analog output and digital input/output
Operating Temperature/Humidity 0 to 40 °C 10 to 80 %RH (non-condensing)
DimensionsW84 x H275 x D40 mm (excluding protrusions)
Weight Approx. 640g (including batteries)
Power Source 4 x AA alkaline dry cells or AC adaptor
Battery Life :Up to 8 hours by alkaline
-
